Oxygen activity measurement  in molten steel  during production.

SIDERKEMCO Oxygen Measuring line TEMPOX is composed by a very precise and fast expendable  probeand an electronic reliable high precision  reading instrument , generated signals are conveyed  to the instrumentation throughout  necessary  hardware ( immersion lance & cable / or wireless systems )
Fast reliable melt’s Oxygen activity  a(O) from melting side up to final casting process , mathematical determination also of  carbon % in primary stage and dissolved aluminium  % in secondary stage.

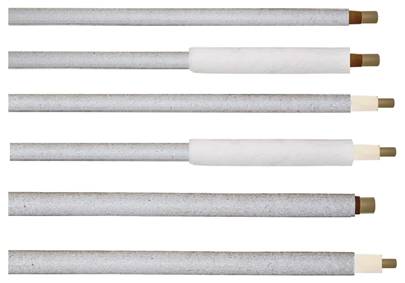

On immersion practice Standard  probe lengths are available , special lengths are also designed according customer request .
Measuring sensors  and reading instrumentation are designed to fit  world standards .
SIDERKEMCO Temperature and  Oxygen measuring line assure an accuracy of 0+3 °C following quality standard BS EN ISO 9001-2008  and is available according following ranges :
Calibration  ‘’S’’ Pt Rh 10%
Calibration  ‘’R’’ Pt Rh 13%
Calibration  ‘’B’’ Pt Rh 30% - Pt Rh 6%

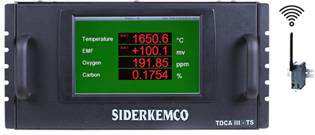

Measuring electronic Equipment  LQD-TOCA III TS

 ‘’ Wall mounting version’’ steel case IP54




‘’Rack 19’’ panel mounting version ’’ steel case IP54









 DISSOLVED  OXYGEN ACTIVITY AND C%       LOW LEVEL DISSOLVED OXYGEN ACTIVITY AND
        CONTENT  IN E.A.F. OR  B.O.F.                   SOLUBLE AL% CONTENT  IN L/F OR VD









SiderKemco A.Ş.
