SUBLANCE Temperature - Carbon - Oxygen activity –Bath Level measurement  in molten steel  during production.

SIDERKEMCO  Sublance probe TEMPLANCE  is a multi-sensor  probe line  specially  designed for simultaneously measurements in BOF.
Various sensor combinations are available , Temperature only, in combination with Oxygen / Carbon and/ or thermal analysis together with sampling for laboratory, bath level signal also available.
Measuring line is composed by a very precise electronic reliable high precision  reading instrument , generated signals are conveyed  to the instrumentation throughout  necessary  hardware ( Sublance immersion lance  )
On immersion practice Standard  probe lengths are available , special lengths are also designed according customer request .
Measuring sensors  and reading instrumentation are designed to fit  world standards .
SIDERKEMCO Temperature and  Oxygen measuring line assure an accuracy of 0+3 °C following quality standard BS EN ISO 9001-2008  and is available according following ranges :
Calibration  ‘’S’’ Pt Rh 10%
Calibration  ‘’R’’ Pt Rh 13%
Calibration  ‘’B’’ Pt Rh 30% - Pt Rh 6%

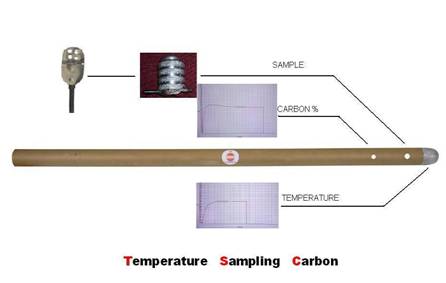

TEMPERATURE  CARBON SAMPLER INBLOW /CONVERTER

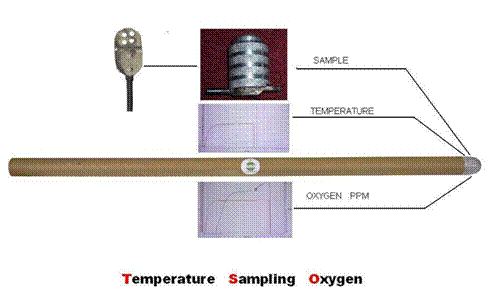

TEMPERATURE OXYGEN ACTIVITY SAMPLER ENDBLOW /CONVERTER




  Measuring electronic Equipment  LQD-TEMPLANCE  TS

‘’Rack 19’’ panel mounting version ’’ steel case IP54
