Temperature measurement  in molten steel during production.

SIDERKEMCO  molten metal temperature Measuring line TEMPIN is composed by a very precise and fast expendable immersion thermocouple and an electronic reliable high precision  reading instrument , generated signal is conveyed  to the instrumentation throughout  necessary  hardware (immersion lance & cable / or wireless)
Standard  probe lengths are available , special lengths are also designed according customer request .
Temperature measuring probes and reading instrumentation are designed to fit  world standards .
Multi-immersion probes are available together with non-splash thermo-tube protection  .
SIDERKEMCO Temperature measuring line assure an accuracy of 0+3 °C following quality standard BS EN ISO 9001-2008
and is available according following ranges :
Calibration  ‘’S’’ Pt Rh 10% Range -50 to 1767 °C
Calibration  ‘’R’’ Pt Rh 13% Range -50 to 1767 °C
Calibration  ‘’B’’ Pt Rh 30% - Pt Rh 6%   Range 0 to 1820 °C

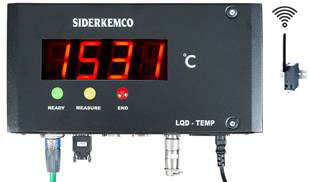

                                                      Measuring electronic Equipment  LQD-TEMP



 ‘’ Wall mounting version’’ steel case IP54











‘’Rack 19’’ panel mounting version ’’ steel case IP54
